Custom Paymasters

Developers can deploy a Paymaster compatible with EntryPoint v0.7 to pay Gas for UserOperations that satisfy a custom policy. Developers are responsible for maintaining the custom Paymaster contract, sponsorship service, funds, signature policy, risk controls, and availability.

Reference implementations:

• TokenPaymaster.sol
• VerifyingPaymaster.sol
• LegacyTokenPaymaster.sol

1. IPaymaster API

interface IPaymaster {
    enum PostOpMode {
        opSucceeded,
        opReverted,
        postOpReverted
    }

    function validatePaymasterUserOp(
        PackedUserOperation calldata userOp,
        bytes32 userOpHash,
        uint256 maxCost
    ) external returns (
        bytes memory context,
        uint256 validationData
    );

    function postOp(
        PostOpMode mode,
        bytes calldata context,
        uint256 actualGasCost,
        uint256 actualUserOpFeePerGas
    ) external;
}

1.1 validatePaymasterUserOp

Parameter	Description
userOp	Complete PackedUserOperation to sponsor
userOpHash	UserOperation hash bound to EntryPoint and chainId
maxCost	Maximum cost calculated from the UserOperation Gas limits and prices

Return values:

Field	Description
context	Context passed to postOp; empty bytes means that postOp is not required
validationData	Signature validity and time range

Paymaster validationData has the same layout as account validation data:

Low 160 bits: 0 for valid, 1 for signature failure
Next 48 bits: validUntil; 0 means no expiry
High 48 bits: validAfter

A Paymaster cannot return an aggregator address. A value other than 0 or 1 in the low 160 bits causes validation to fail.

This method must:

• Accept calls only from the bound EntryPoint.
• Validate paymasterData, sender, target call, limit, and expiry.
• Revert or return signature failure for a UserOperation that violates the sponsorship policy.
• Perform budget and quota checks within maxCost.
• Comply with the Bundler's ERC-7562 storage-access and state-change rules.

1.2 postOp

Parameter	Description
mode	Whether UserOperation execution succeeded or reverted
context	Context returned by the validation stage
actualGasCost	Actual Gas cost incurred before postOp is called
actualUserOpFeePerGas	Actual Gas price paid by this UserOperation

PostOpMode values:

Value	Description
opSucceeded	Account business call succeeded
opReverted	Account business call reverted; the Paymaster still pays the Gas
postOpReverted	Internal EntryPoint cleanup state; it is not passed to the Paymaster as a call argument

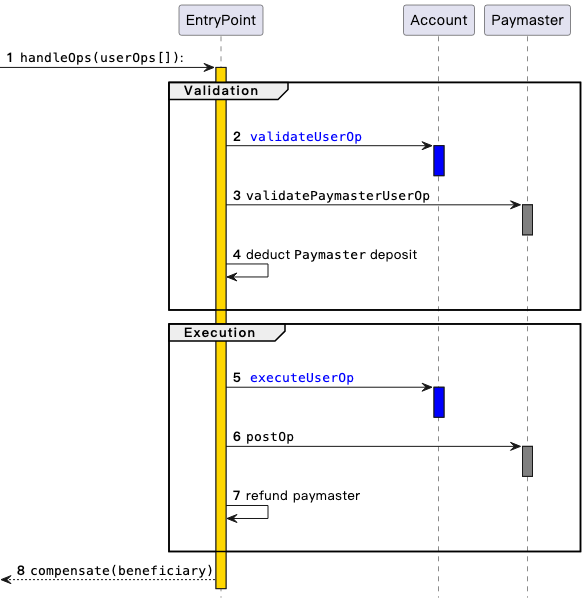

EntryPoint calls postOp only when context is non-empty. If validation returns a non-empty context, the Paymaster must provide a reliable postOp. A postOp revert causes the UserOperation to fail, but the Gas already consumed must still be paid.

2. BasePaymaster

BasePaymaster.sol provides EntryPoint binding, caller validation, and deposit and stake management. A subclass only needs to implement sponsorship-policy logic.

2.1 Subclass extension interfaces

function _validatePaymasterUserOp(
    PackedUserOperation calldata userOp,
    bytes32 userOpHash,
    uint256 maxCost
) internal virtual returns (
    bytes memory context,
    uint256 validationData
);

function _postOp(
    PostOpMode mode,
    bytes calldata context,
    uint256 actualGasCost,
    uint256 actualUserOpFeePerGas
) internal virtual;

_validatePaymasterUserOp is required. Override _postOp when validation returns non-empty context; the default BasePaymaster _postOp reverts.

2.2 Fund-management interfaces

function entryPoint() external view returns (address);

function deposit() external payable;

function getDeposit() external view returns (uint256);

function withdrawTo(
    address payable withdrawAddress,
    uint256 amount
) external;

function addStake(uint32 unstakeDelaySec) external payable;

function unlockStake() external;

function withdrawStake(
    address payable withdrawAddress
) external;

Except for deposit, BasePaymaster restricts withdrawal and stake-management methods to the Owner.

3. RPC UserOperation fields

When using a Paymaster, the RPC UserOperation contains:

Field	Type	Description
paymaster	address	Paymaster contract address
paymasterVerificationGasLimit	QUANTITY	Gas limit for Paymaster validation
paymasterPostOpGasLimit	QUANTITY	Gas limit for Paymaster postOp
paymasterData	DATA	Custom authorization, signature, or policy data

Both Gas limits must be present in the final submitted object. The Paymaster implementation and sponsorship service define the paymasterData format.

Omit all four fields when no Paymaster is used. Do not provide the zero address.

4. paymasterAndData layout

The RPC fields are packed into PackedUserOperation using this layout:

Offset 0, length 20 bytes: paymaster
Offset 20, length 16 bytes: paymasterVerificationGasLimit
Offset 36, length 16 bytes: paymasterPostOpGasLimit
Offset 52 to the end: paymasterData

When a Paymaster is used, this field is at least 52 bytes long. When no Paymaster is used, paymasterAndData is empty bytes.

5. Deposit and stake

5.1 Deposit

The deposit pays actual UserOperation Gas. EntryPoint checks and reserves the required prefund during validation.

Interface	Description
depositTo(paymaster)	Adds to the Paymaster's Gas deposit
balanceOf(paymaster)	Queries the available deposit
withdrawTo	Withdraws the Paymaster's own deposit

An insufficient deposit produces AA31 paymaster deposit too low.

5.2 Stake

Stake supports the Bundler's reputation and denial-of-service protections; it does not directly pay Gas.

Interface	Description
addStake	Adds stake and sets the unlock delay
unlockStake	Begins the unlock waiting period
withdrawStake	Withdraws the stake after the waiting period

When a Paymaster accesses associated storage or changes certain state during validation, the Bundler may require a minimum stake and unstake delay. Exact thresholds depend on Bundler configuration.

6. Common errors

Error	Meaning
AA31	Paymaster deposit is insufficient
AA32	Paymaster validationData time range is invalid
AA33	validatePaymasterUserOp reverted
AA34	Low 160 bits of Paymaster validationData are not 0
AA36	Paymaster validation exceeded its Gas limit
PostOpReverted	postOp reverted; also inspect the PostOpRevertReason event
AA93	paymasterAndData length or layout is invalid
